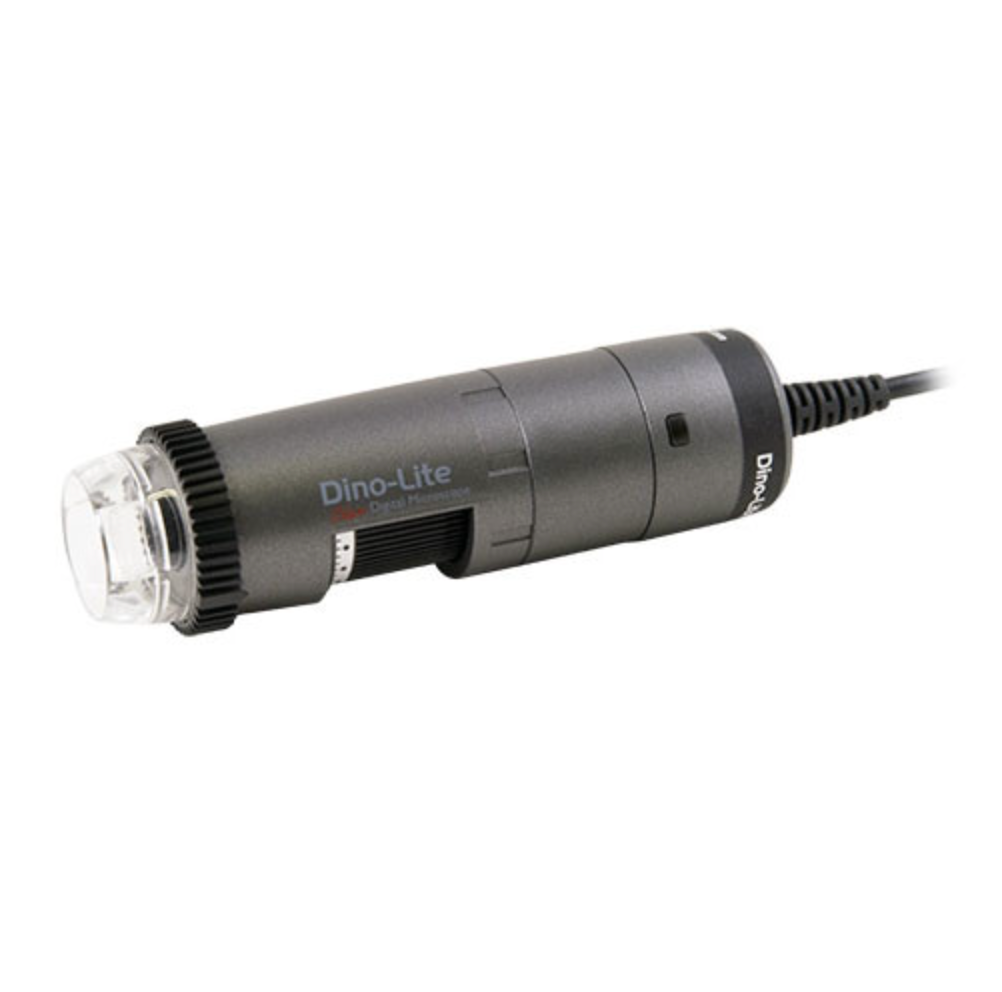

AF4935ZTE

Product Description

The AF4935ZTE is a feature-packed microscope that provides a versatile magnification range from 10x ~ 330x, surpassing standard magnification models. Ready to perform a wide range of tasks, AF4935ZTE offers a polarizer as well as FLC, AMR, EDOF, and EDR. This model is compatible with the WF-20 Wi-Fi streamer.

In comparison, the AF4x35 series provides a similar working distance range but achieves higher magnifications compared to the AM4x15 series.

​1.3 Megapixel The advanced CMOS image sensor can transmit fluid and crisp images at 15 fps with resolution up to 1280 x 960.     ​Flexible LED Control (FLC) Tasking with software, the FLC provides a six-level intensity adjustment capability for active LED quadrants.     Adjustable Polarizer The built-in adjustable polarizer removes unwanted reflection or glare from the object's surface for better contrast.     ​Extended Depth of Field (EDOF) Viewing rough surfaces with height ranges out of depth of focus, the EDOF can take several images at different focuses and stack them automatically within a click.     ​Extended Dynamic Range (EDR) Observing high contrast or reflective surface, the EDR can help to reveal the details of dark or bright areas by stacking images taken at different exposure levels.     ​Auto and Manual Refocusing Using mouse inputs, the refocusing capability helps fine-tune the focus, either automatically by clicking at the point of interest or manually by scrolling the mouse.     ​Automatic Magnification Readout (AMR) The Automatic Magnification Readout (AMR) detects the magnification in use, eliminating manual input errors and enhancing measurement accuracy in tasks with frequent magnification adjustments.     ​Adaptable Interface The adaptable interface provides the capability of transforming Dino-Lite into a wireless microscope when attaching with the WF-20.         Optical Data Table M WD FOV (x) FOV (y) DOF 10 223.7 39.1 29.3 55.6 20 100.1 19.5 14.7 14.6 30 59.6 13.0 9.8 6.8 40 39.8 9.8 7.3 4.0 50 29.3 7.8 5.9 2.7 60 21.0 6.5 4.9 2.0 70 16.0 5.6 4.2 1.5 80 12.5 4.9 3.7 1.2 90 10.0 4.3 3.3 1.0 100 8.2 3.9 2.9 0.8 110 6.9 3.6 2.7 0.7 120 6.0 3.3 2.4 0.6 130 5.4 3.0 2.3 0.5 140 5.0 2.8 2.1 0.5 150 4.7 2.6 2.0 0.4 160 4.7 2.4 1.8 0.4 170 4.7 2.3 1.7 0.4 180 4.9 2.2 1.6 0.3 190 5.1 2.1 1.5 0.3 200 5.4 2.0 1.5 0.3 210 5.8 1.9 1.4 0.3 220 6.2 1.8 1.3 0.3 230 6.7 1.7 1.3 0.2 240 7.2 1.6 1.2 0.2 250 7.7 1.6 1.2 0.2 260 8.3 1.5 1.1 0.2 270 8.9 1.4 1.1 0.2 280 9.6 1.4 1.0 0.2 290 10.2 1.3 1.0 0.2 300 10.9 1.3 1.0 0.2 310 11.6 1.3 0.9 0.2 320 12.3 1.2 0.9 0.2 330 13.1 1.2 0.9 0.2 M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm Note: All optical data presented in the table above are conducted under white light conditions.
