  • AF4535ZTE-N3U

    • AF4535ZTE-N3U

    $1,360.00
    (No reviews yet) Write a Review
    SKU:
    AF4535ZTE-N3U
    Adding to cart… category.add_cart_announcement

    Product Description

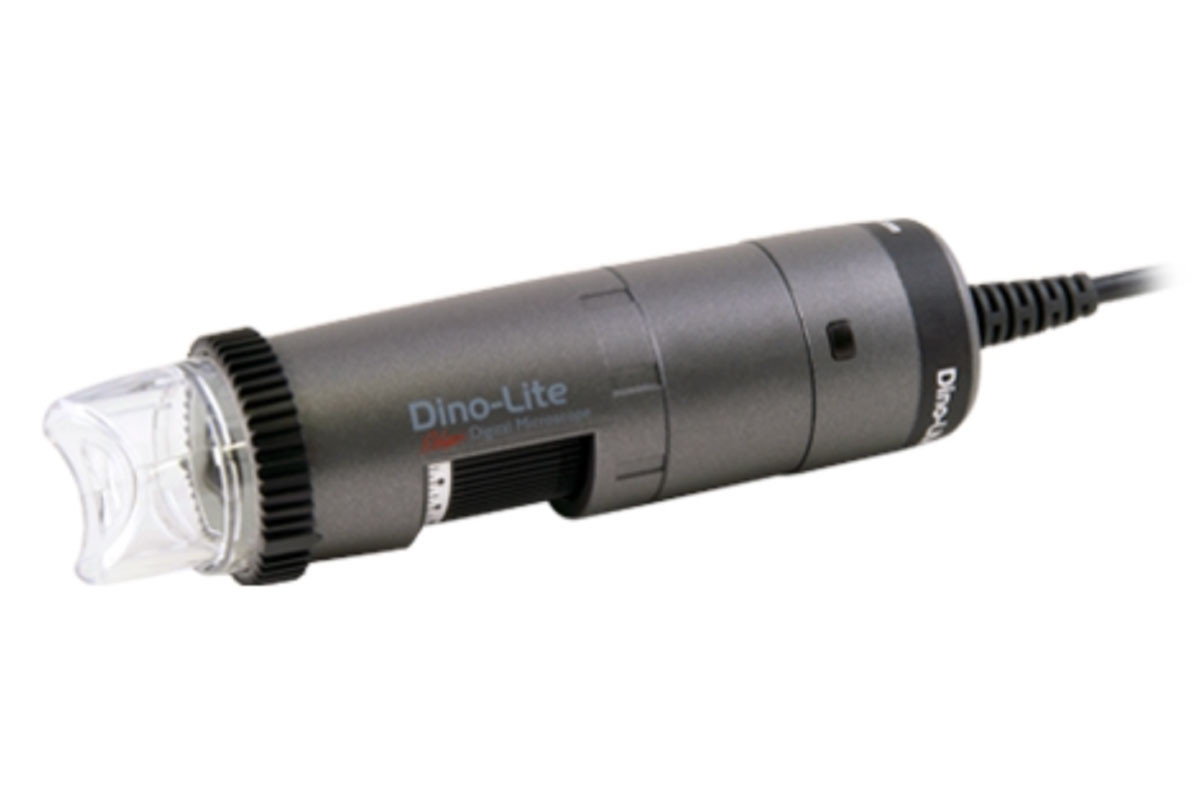

    Based on the AF4535ZTE, AF4535ZTE-N3U comes with a detachable nailfold cap (N3C-N) for macro and micro-level capillary observations. This model offers 80x and 300x magnification when using the nailfold cap in contact with the nailfold. AF4535ZTE-N3U is compatible with the WF-20 Wi-Fi streamer for wireless connectivity.


      ​1.3 Megapixel
    The advanced CMOS image sensor can transmit fluid and crisp images at 15 fps with resolution up to 1280 x 960.

      ​Flexible LED Control (FLC)
    Tasking with software, the FLC provides a six-level intensity adjustment capability for active LED quadrants.

      ​Adjustable Polarizer
    The built-in adjustable polarizer removes unwanted reflection or glare from the object's surface for better contrast.

      ​Automatic Magnification Readout (AMR)
    The Automatic Magnification Readout (AMR) detects the magnification in use, eliminating manual input errors and enhancing measurement accuracy in tasks with frequent magnification adjustments.

      ​Adaptable Interface
    The adaptable interface provides the capability of transforming Dino-Lite into a wireless microscope when attaching with the WF-20.




        Optical Data Table
    M WD FOV (x) FOV (y) DOF
    10 222.3 39.1 29.3 55.5
    20 98.9 19.5 14.7 14.6
    30 58.5 13.0 9.8 6.8
    40 38.7 9.8 7.3 4.0
    50 27.2 7.8 5.9 2.7
    60 19.9 6.5 4.9 2.0
    70 14.9 5.6 4.2 1.5
    80 11.5 4.9 3.7 1.2
    90 9.0 4.3 3.3 1.0
    100 7.2 3.9 2.9 0.8
    110 5.9 3.6 2.7 0.7
    120 4.9 3.3 2.4 0.6
    130 4.3 3.0 2.3 0.5
    140 3.9 2.8 2.1 0.5
    150 3.7 2.6 2.0 0.4
    160 3.6 2.4 1.8 0.4
    170 3.7 2.3 1.7 0.4
    180 3.8 2.2 1.6 0.3
    190 4.1 2.1 1.5 0.3
    200 4.4 2.0 1.5 0.3
    210 4.7 1.9 1.4 0.3
    220 5.2 1.8 1.3 0.2
    230 5.6 1.7 1.3 0.2
    240 6.2 1.6 1.2 0.2
    250 6.7 1.6 1.2 0.2
    260 7.3 1.5 1.1 0.2
    270 7.9 1.4 1.1 0.2
    280 8.5 1.4 1.0 0.2
    290 9.2 1.3 1.0 0.2
    300 9.9 1.3 1.0 0.2
    310 10.6 1.3 0.9 0.2
    320 11.3 1.2 0.9 0.1
    330 12.0 1.2 0.9 0.1

    M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm

    Note: All optical data presented in the table above are conducted under white light conditions.

    ​Model AF4535ZTE-N3U
    ​Series Dino-Lite Edge
    ​Interface USB 2.0
    ​Full Resolution 1.3 Megapixel (1280 x 960)
    ​Magnification Adjustable, 10x ~ 330x
    Frame Rate
    15 fps at 1.3 MP, MJPEG
    30 fps at VGA, MJPEG

    System Requirements
    CPU:
    Intel Core i5 6th Gen or higher
    AMD Ryzen 5 1000 series or higher

    Memory:
    4 GB or more

    Storage:
    150 MB available space or more

    Operating System
    Windows 10/11 or later
    macOS 10.14 or later

    Saving Format
    Image:
    DinoCapture 2.0: BMP, PNG, TIF, JPG
    DinoCapture 3.0: BMP, PNG, TIF, JPG
    DinoXcope: PNG, JPEG

    Video:
    DinoCapture 2.0: WMV, FLV, SWF
    DinoCapture 3.0: MP4
    DinoXcope: MOV

    ​Measurement Function Yes
    ​Calibration Function Yes
    ​Microtouch Yes
    ​Scroll Lock Yes
    ​Illumination White Light, 8 LEDs
    ​Included Front Caps N3C-N (Nailfold Cap), Qty: 5 units
    ​Cable Type USB Type-A cable
    Cable Length Approx. 1.8 m
    Unit Dimension
    122 mm (H) x 34 mm (D)




    ​Unit Weight Approx. 110 g, incl. cable and cap (N3C-N)
