  • AM8117MZT

    • AM8117MZT

    $2,195.00
    (No reviews yet) Write a Review
    SKU:
    AM8117MZT
    Adding to cart… category.add_cart_announcement

    Product Description

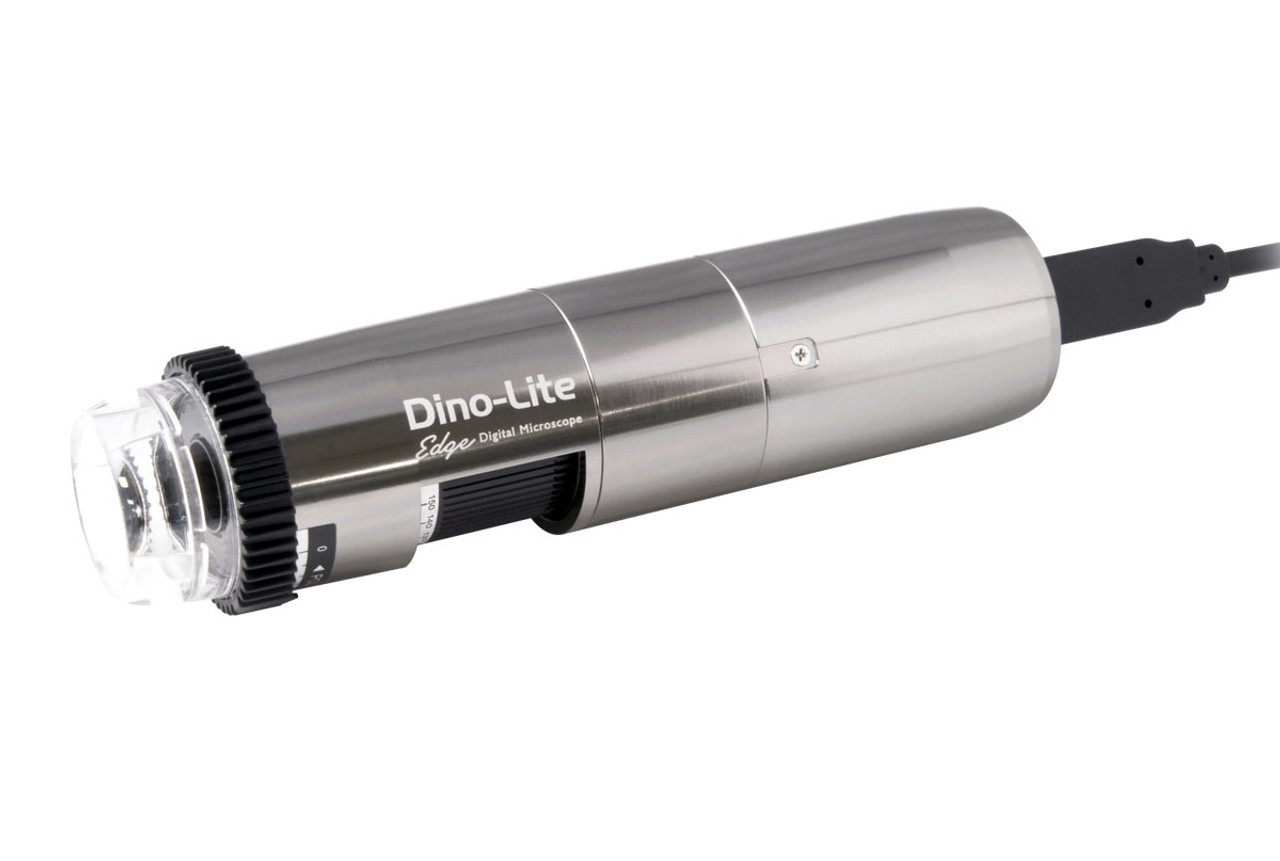

    Taking image quality to the next level, the 8-megapixel AM8117MZT digital microscope delivers high resolution and color fidelity for a natural-looking and detailed imaging experience. AM8117MZT includes a polarizer for reducing unwanted reflections as well as eFLC for maximizing lighting adjustability.


      ​High Optical Resolution
    The superior optics adopted in the Edge series reveals the finest details, answering the needs of the most demanding microscopy applications.

      ​8.0 Megapixel
    The 8.0-megapixel sensor captures a large field of view with a 16:9 aspect ratio and delivers natural-looking colors and enhanced image contrast at a resolution of up to 3840 x 2160.

      Enhanced Flexible LED Control (eFLC)
    Improving FLC capabilities, eFLC can adjust the light intensity on two assigned groups of LED quadrants, each with 32-level light intensity adjustment.

      ​Adjustable Polarizer
    The built-in adjustable polarizer removes unwanted reflection or glare from the object's surface for better contrast.

      ​Robust Metal Housing
    The metal housing made of anodized aluminum alloy offers compelling advantages of protection and endurance. The anodized alloy provides extra protection from electromagnetic interference.

        Information about working distance and field of view
    M WD FOV (x) FOV (y) DOF
    10 142.6 60.69 34.14 26.15
    20 59.8 30.35 17.07 7.05
    30 33.1 20.23 11.38 3.36
    40 20.5 15.17 8.53 2.02
    50 13.4 12.14 6.83 1.38
    60 9.2 10.11 5.69 1.01
    70 6.7 8.67 4.88 0.79
    80 5.1 7.59 4.27 0.64
    90 4.1 6.74 3.79 0.53
    100 3.7 6.07 3.41 0.45
    110 3.6 5.52 3.10 0.39
    120 3.7 5.06 2.85 0.34
    130 4.1 4.67 2.63 0.30
    140 4.5 4.34 2.44 0.27
    150 5.2 4.05 2.28 0.25
    160 5.9 3.79 2.13 0.22
    170 6.7 3.57 2.01 0.21
    180 7.5 3.37 1.90 0.19
    190 8.5 3.20 1.80 0.18
    200 9.4 3.03 1.71 0.16
    210 10.5 2.89 1.63 0.15
    220 11.5 2.76 1.55 0.14

    M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm
    ​Model AM8117MZT
    ​Series Dino-Lite EdgePLUS
    ​Interface USB 2.0
    ​Resolution 8.0 Megapixel (3840 x 2160)
    ​Magnification 10x ~ 220x
    (Magnifications below 25x may produce images with dark edges for 8.0 MP and 5.0 MP resolution.)
    ​Working Distance 142.6 ~ 11.5 mm
    Frame Rate
    10 fps at 8.0 MP, MJPEG
    25 fps at 2.0 MP, MJPEG
    System Requirements
    CPU: 2.9 GHz dual-core Intel Core i5 equivalent or greater
    RAM: 4 GB or more
    HD: 150 MB available space or more
    ​Operating System Windows 10/11
    Saving Format
    Image:
    DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM

    Video:
    DinoCapture 2.0: WMV, FLV, SWF
    ​Measurement Function Yes
    ​Calibration Function Yes
    ​Microtouch Yes
    ​Scroll Lock Yes
    ​Illumination 8 white LEDs
    Included Front Caps
    N3C-C (Close Cap)
    N3C-D (Diffuser Cap)
    N3C-D2 (Opal Diffuser Cap)
    N3C-E (Extended Open Cap)
    N3C-L (Long Cap)
    N3C-O (Open Cap)
    N3C-S (Sidelight Cap)
    Cable Type
    Type-C to Type-C cable (detachable, w/screw lock)
    Type-C to Type-A cable (detachable, w/screw lock)
    ​Cable Length Approx. 1.8 m
    ​Unit Dimension 130 mm (H) x 33 mm (D)
    ​Unit Weight Approx. 120 g
