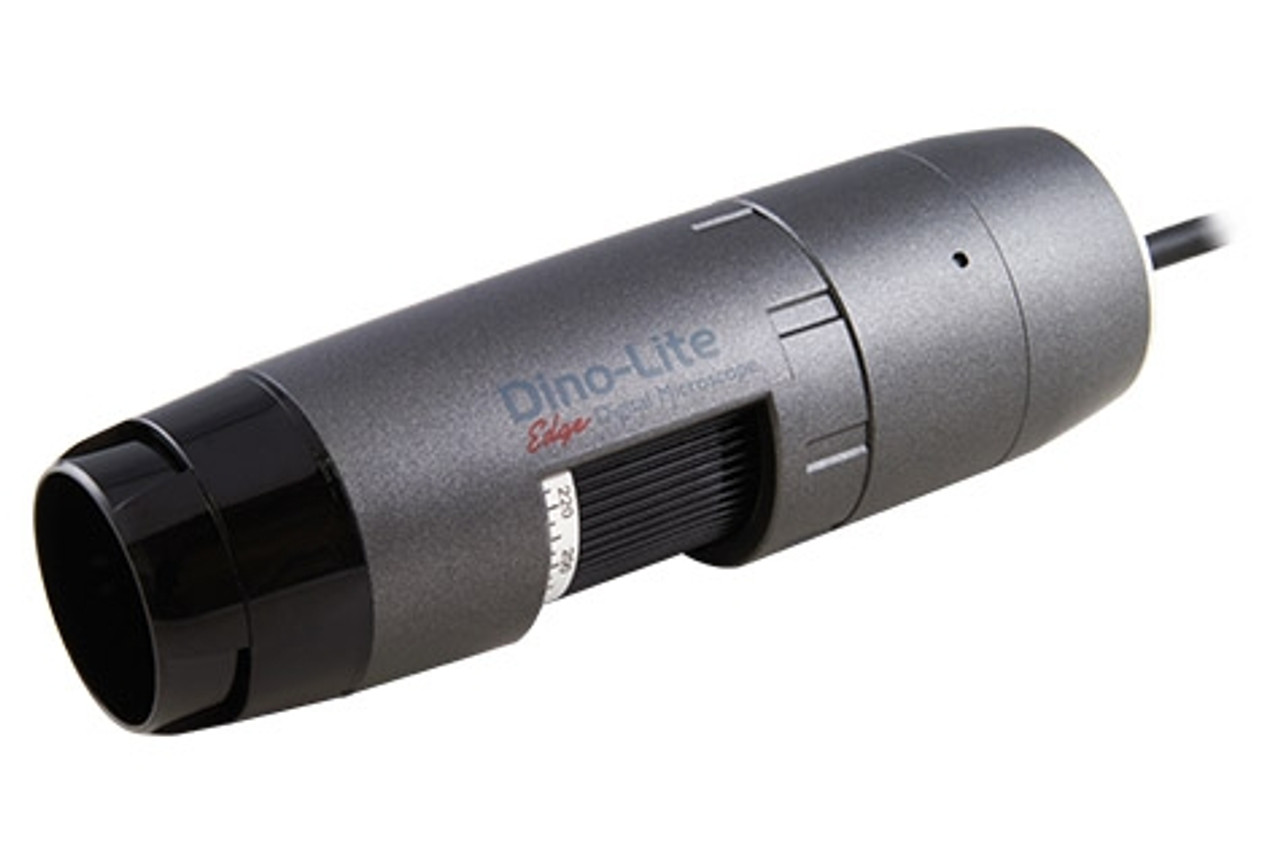

  • AM4115T-FUW

    • AM4115T-FUW

    $1,140.00
    (No reviews yet) Write a Review
    SKU:
    AM4115T-FUW
    Adding to cart… category.add_cart_announcement

    Product Description

    The AM4115T-FUW, with the exceptional image quality of Dino-Lite Edge, featuring 375nm UV and white light switchable by software is designed to meet more professional needs. It also has better adaptability to different applications with the detachable and exchangeable front cap design.

      High optical resolution
    With the state-of-the-art lens design, the Dino-Lite Edges series delivers matchless image quality with stunning sharpness, least aberration, and least vignetting throughout the whole magnification range.

      Convenient flexible magnification
    The Dino-Lite is capable of variable magnification with a range of 20~220x depending of working distance by simply zooming in or out with just a rotating dial.

      375nm UV illumination
    375nm Near UV lighting to illuminate specimens.

      Dual light source
    This software controlled feature allows switching between two sets of lighting for examination.

      Adaptable cap design
    This model features a detachable and interchangeable front cap that extends its range of use, as different caps are available for various applications. Removing the front cap provides greater working distance and access to the full magnification range.

    Interchangeable Front Caps
      N3C-C / Close Cap
      This cap protects the lens and LED lights from contamination of dust, debris, or moisture.

      N3C-D / Diffuser Cap
      This cap diffuses the LED light.

      N3C-D2 / Opal Diffuser Cap
      This cap diffuses the LED light.

      N3C-E / Extended Open Cap
      Dino-Lite Edge (stand type) will focus at approximately 200x when the cap touches surface.

      N3C-L / Long Cap
      This cap is useful to adjust the working focus of Dino-Lite Edge at lower magnification.

      N3C-OB / Open Cap
      This is the standard cap for normal usage.

      N3C-S / Sidelight Cap
      This cap creates images with more depth and texture.


    Information about working distance and field of view
    M WD FOV (x) FOV (y) DOF
    20 60.2 19.5 15.6 2.5
    30 33.5 13 10.4 1.8
    40 20.9 9.8 7.8 1.5
    50 13.9 7.8 6.3
    60 9.7 6.5 5.2
    70 7.1 5.6 4.5 1.0
    80 5.5 4.9 3.9
    90 4.5 4.3 3.5
    100 4.1 3.9 3.1
    110 4 3.6 2.8
    120 4.1 3.3 2.6
    130 4.5 3 2.4
    140 5 2.8 2.2
    150 5.6 2.6 2.1
    160 6.3 2.4 2
    170 7.1 2.3 1.8
    180 8 2.2 1.7
    190 8.9 2.1 1.6
    200 9.9 2 1.6
    210 10.9 1.9 1.5
    220 11.9 1.8 1.4 0.1

    M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm



    Other Details

    Model AM4115T-FUW Dino-Lite Edge
    Interface USB 2.0
    Product Resolution 1.3M pixels (SXGA)
    Magnification Rate 20x~220x
    Sensor Color CMOS
    Frame Rate Up to 30fps
    Save Formats Image:
    DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
    DinoXcope: PNG, JPEG

    Movie:
    DinoCapture2.0: WMV, FLV, SWF
    DinoXcope: MOV
    Microtouch Touch sensitive trigger on the microscope for taking pictures
    Lighting 4 white and 4 UV(375nm) LED lights switched by software
    Measurement Function Yes
    Calibration Function Yes
    Operating System Supported Windows 10, 8, 7, Vista, XP
    MAC OS 10.4 or later
    Unit Weight 100g
    Unit Dimension 10.5cm (H) x 3.2cm (D)
    Package Dimensions 16cm (L) x 16cm (W) x 6cm (H)
