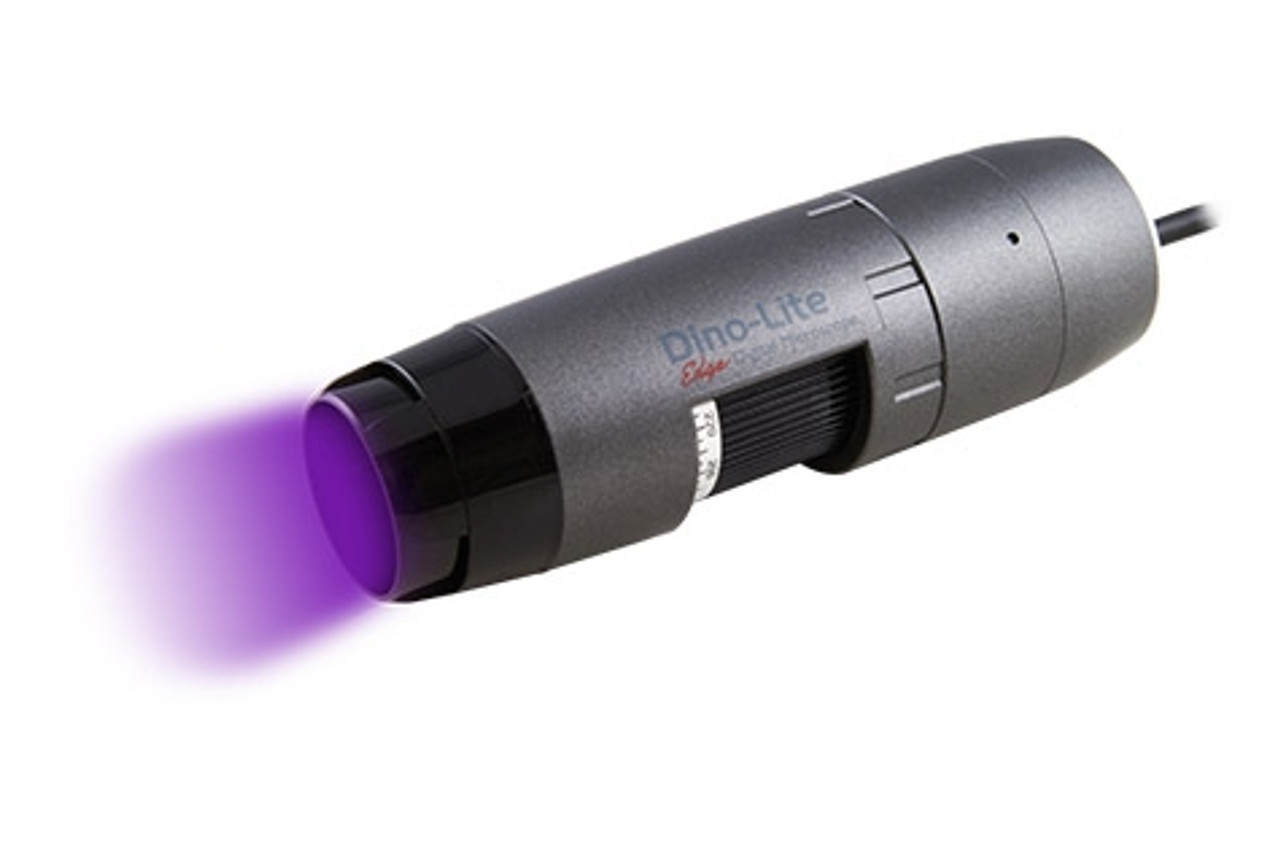

AM4115T-CFVW

Product Description

Applicable for research with cyan and a wide range of fluorescence, the Dino-Lite EDGE AM4115T-CFVW digital microscope is one of the world smallest fluorescence microscopes with near UV excitation LEDs integrated. With its small form factor, it impacts the microscopy world by change how the fluorescence microscope can be used for research by no longer needing to be bulky, heavy, expensive, or delicate.

The world's smallest fluorescence microscope The AM4115T-CFVW cleverly integrates special 400nm LED excitation lights and a high-pass type emission filter that cuts off at 430nm into a Dino-Lite digital microscope. This makes it the smallest microscope capable of visualizing cyan and also a wide range of fluorescence for applications such as in: developmental biology, pathology, and anatomy. It also packs a white LED for non-excitation lighting to assist in locating points of interest.

High sensitivity to orange to red fluorescence The Dino-Lite uses a high sensitivity 1.3 Megapixels sensor combined with a specially designed lens to capture faint fluorescent signals with results comparable to some traditional microscope capabilities.

Convenient flexible magnification The Dino-Lite is capable of variable magnification with a range of 20x~220x depending of working distance by simply zooming in or out with just a rotating dial.

USB 2.0 Interface It only requires USB 2.0 to power the device so it can be connected or travel with a compatible PC/ MAC for analysis and documentation with its bundled software.

Interchangeable Front Caps   N3C-OB / Open Cap   This is the standard cap for Fluorescence model usage.

Information about working distance and field of view M WD FOV (x) FOV (y) DOF 20 60.2 19.5 15.6 1.52 30 33.5 13 10.4   40 20.9 9.8 7.8   50 13.9 7.8 6.3 0.3 60 9.7 6.5 5.2   70 7.1 5.6 4.5   80 5.5 4.9 3.9   90 4.5 4.3 3.5   100 4.1 3.9 3.1   110 4 3.6 2.8   120 4.1 3.3 2.6   130 4.5 3 2.4   140 5 2.8 2.2   150 5.6 2.6 2.1   160 6.3 2.4 2   170 7.1 2.3 1.8   180 8 2.2 1.7   190 8.9 2.1 1.6   200 9.9 2 1.6 0.04 210 10.9 1.9 1.5   220 11.9 1.8 1.4   M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm
