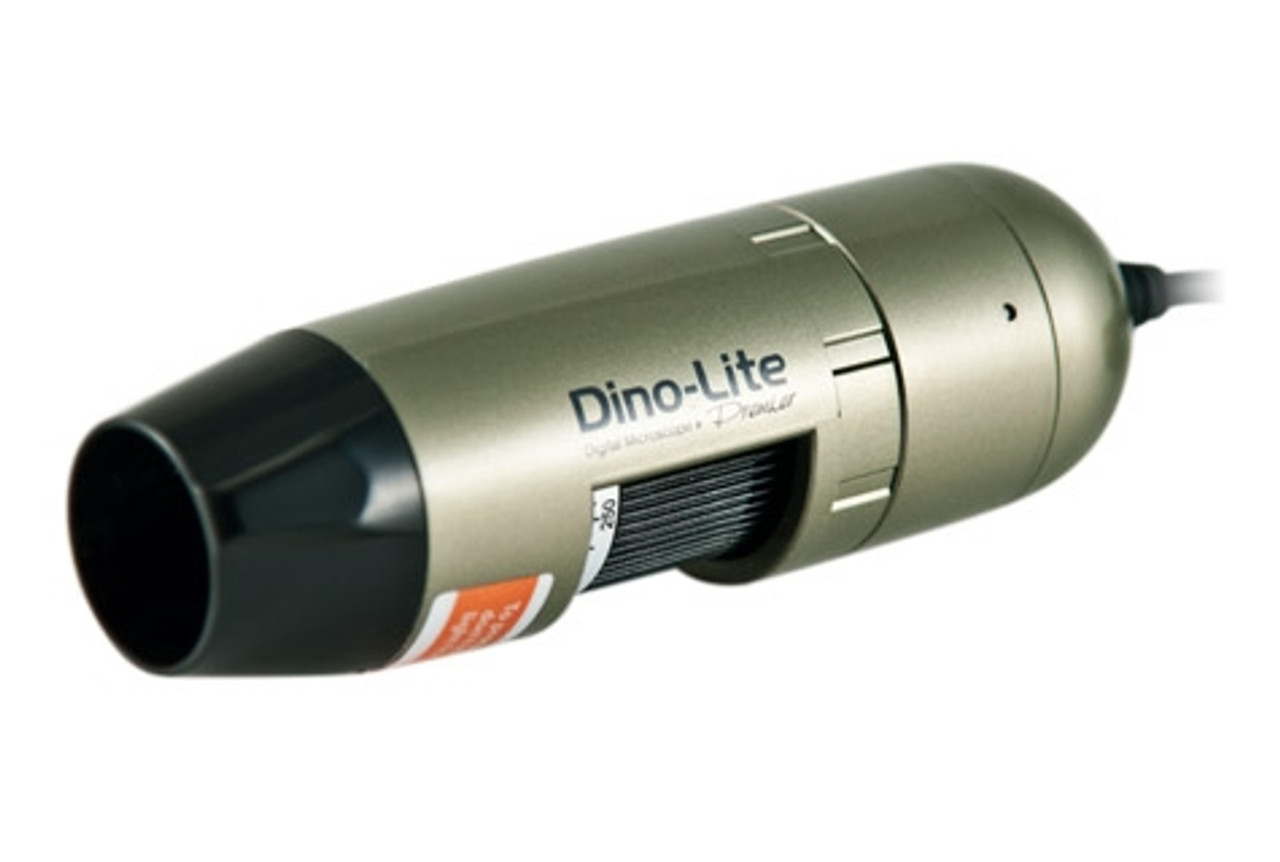

  • AM4113-FV2T

    • AM4113-FV2T

    $995.00
    (No reviews yet) Write a Review
    SKU:
    AM4113-FV2T
    Adding to cart… category.add_cart_announcement

    Product Description

    Featuring 375nm UV using enhanced 1.3 Megapixels sensor.

      Enhanced 1.3 Megapixels
    It observes with accurate color reproductions and retain details under low lighting with the optimum resolution for detailed live preview and captured images.

      Convenient flexible magnification
    Have the freedom to magnify from 20x to 50x the closer the Dino-Lite is to the target, using the Dino-Lite knob to focus for each magnification. Achieve an additional 200x when the Dino-Lite is at close range.

      USB 2.0 Interface
    Digitize the microscopy experience; allow easy recording and sharing of observations in the office or out in the field with a compatible PC or MAC.

      Professional measurement tools
    Use professional measurement tools that are calibratable for assured accuracy and convienently document or share information with the bundled software.

      375nm UV illumination
    375nm Near UV lighting to illuminate specimens.

      Scroll Lock
    Assure the knobs position with the scroll lock.

        Information about working distance and field of view
    M WD FOV (x) FOV (y)
    20 48.7 19.6 15.6
    30 21.7 13.0 10.4
    40 9.0 9.8 7.8
    50 1.9 7.8 6.3
    60 -2.3 6.5 5.2
    220 -0.1 1.8 1.4
    230 1.0 1.7 1.4
    240 2.1 1.6 1.3

    M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm




    Other Details

    Model AM4113-FV2T Dino-Lite Premier
    Interface USB 2.0
    Product Resolution 1.3M pixels (SXGA)
    Magnification Rate 20x~50x, 200x
    Sensor Color CMOS
    Frame Rate Up to 30fps
    Save Formats Image:
    DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
    DinoXcope: PNG, JPEG

    Movie:
    DinoCapture2.0: WMV, FLV, SWF
    DinoXcope: MOV
    Microtouch Touch sensitive trigger on the microscope for taking pictures
    Lighting 4 UV(375nm) LED lights switch on/off by software
    Measurement Function Yes
    Calibration Function Yes
    Operating System Supported Windows 10, 8, 7, Vista, XP
    MAC OS 10.4 or later
    Unit Weight 105g
    Unit Dimension 10.5 cm (H) x 3.2 cm (D)
    Package Dimensions 16 cm (L) x 16 cm (W) x 6 cm (H)
