AF7515MZT4

Product Description

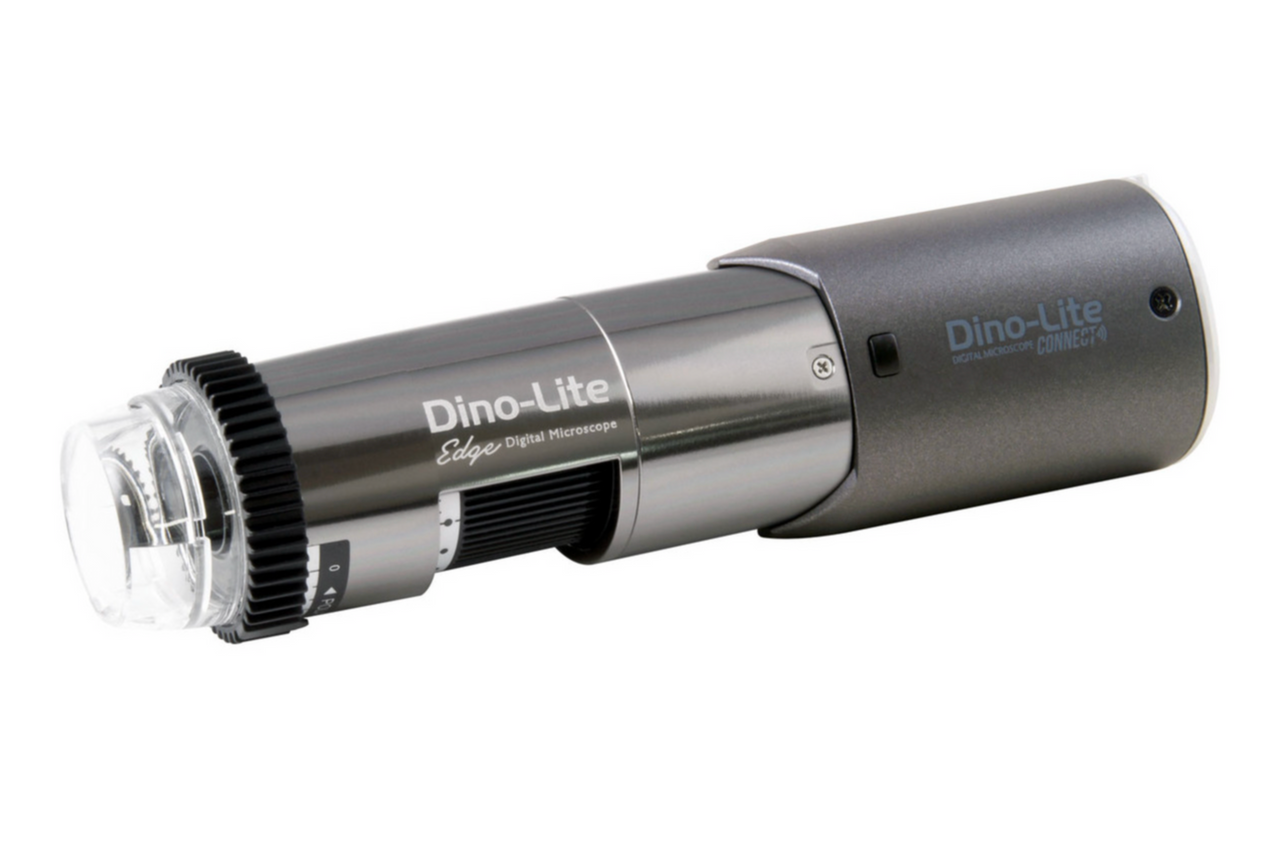

The AF7515MZT4 5-megapixel digital microscope delivers high-quality images with remarkable color performance at 400x magnification. With a built-in polarizer and FLC, the AF7515MZT4 is a versatile tool for a wide range of tasks, including viewing small defects, edge sharpness, and surface roughness. AF7515MZT4 features AMR to facilitate measurements and is also compatible with the optional WF-20 Wi-Fi streamer.

USB connection included, WF-20(W) WiFi Module NOT Included.
WF-20(W) WiFi Module can be purchased separately here

​High Optical Resolution The superior optics adopted in the Edge series reveals the finest details, answering the needs of the most demanding microscopy applications.     ​5.0 Megapixel The 5-megapixel sensor excels at capturing fine details and can transmit high-quality images at a resolution of 2592 x 1944.     Flexible LED Control (FLC) Tasking with software, the FLC provides a six-level intensity adjustment capability for each LED quadrant independently.     ​Adjustable Polarizer The built-in adjustable polarizer removes unwanted reflection or glare from the object's surface for better contrast.     ​Automatic Magnification Reading (AMR) The AMR feature automatically detects the magnification power in real time, improving measurement efficiency, easing magnification readings, and minimizing input errors in measurement tasks.     ​Adaptable Interface The adaptable interface provides the capability of transforming Dino-Lite into a wireless microscope when attaching with the WF-20.     ​Robust Metal Housing The metal housing made of anodized aluminum alloy offers compelling advantages of protection and endurance. The anodized alloy provides extra protection from electromagnetic interference.         Optical Data Table M WD FOV (x) FOV (y) DOF 400 4.8 0.99 0.74 0.040 410 5.8 0.97 0.72 0.039 420 6.7 0.94 0.71 0.038 430 7.7 0.92 0.69 0.037 440 8.6 0.90 0.67 0.036 450 8.6 0.88 0.66 0.035 460 8.5 0.86 0.65 0.034 470 8.4 0.84 0.63 0.034 M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm

Model AF7115MZTW ​Series Dino-Lite Edge ​Interface USB 2.0 ​Resolution 5.0 Megapixel (2592 x 1944) Magnification 10x ~ 50x Frame Rate 10 fps at 5.0 MP/3.0 MP, MJPEG 25 fps at 1.3 MP, MJPEG 30 fps at VGA, MJPEG   10 fps at 1.3 MP, YUY2 System Requirements CPU: 2.9 GHz dual-core Intel Core i5 equivalent or greater RAM: 4 GB or more HD: 150 MB available space or more Operating System Windows 7/8/10/11 macOS 10.14 or later Saving Format Image: DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM DinoXcope: PNG, JPEG   Video: DinoCapture 2.0: WMV, FLV, SWF DinoXcope: MOV ​Measurement Function Yes ​Calibration Function Yes ​Microtouch Yes ​Scroll Lock Yes ​Illumination 8 white LEDs Included Front Caps N3C-C (Close Cap) N3C-D (Diffuser Cap) N3C-D2 (Opal Diffuser Cap) N3C-E (Extended Open Cap) N3C-L (Long Cap) N3C-O (Open Cap) N3C-S (Sidelight Cap) Cable Type Detachable Micro B – Type-C cable Detachable Micro B – Type-A cable ​Cable Length Approx. 1.8 m ​Unit Dimension 114 mm (H) x 34 mm (D)   ​Unit Weight Approx. 97 g
