Product Description

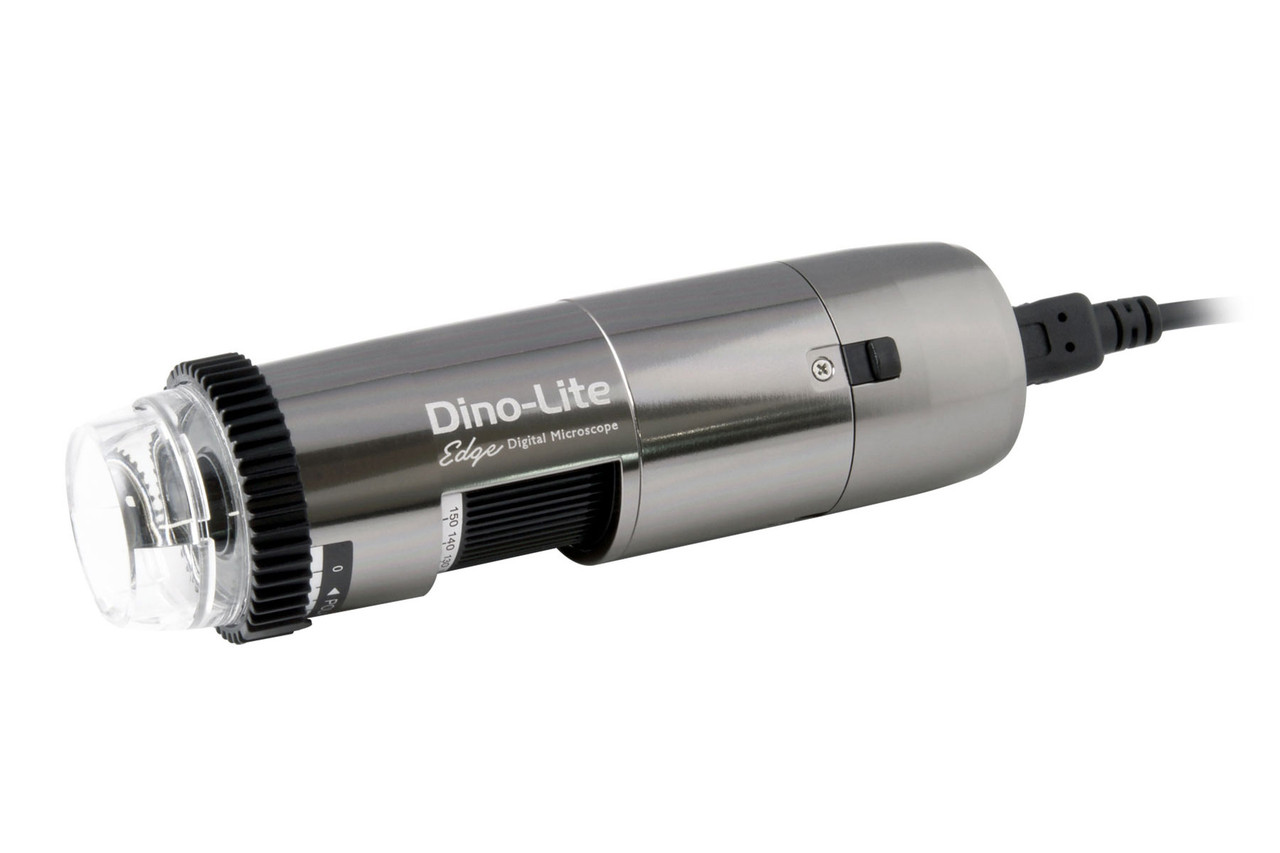

Obtain outstanding image quality and live imaging performance with the 5-megapixel AF7515MZT digital microscope. With advanced features, including AMR and FLC, AF7515MZT is a powerful tool for performing measurements and obtaining high-quality images. The WF-20 Wi-Fi streamer is compatible with AF7515MZT.
USB connection included, WF-20(W) WiFi Module NOT Included.
WF-20(W) WiFi Module can be purchased seperately here
Overview
High Optical Resolution
The superior optics adopted in the Edge series reveals the finest details, answering the needs of the most demanding microscopy applications.
5.0 Megapixel
The 5-megapixel sensor excels at capturing fine details and can transmit high-quality images at a resolution of 2592 x 1944.
Flexible LED Control (FLC)
Tasking with software, the FLC provides a six-level intensity adjustment capability for each LED quadrant independently.
Adjustable Polarizer
The built-in adjustable polarizer removes unwanted reflection or glare from the object's surface for better contrast.
Automatic Magnification Readout (AMR)
The AMR feature automatically detects the magnification power in real time, improving measurement efficiency, easing magnification readings, and minimizing input errors in measurement tasks.
Adaptable Interface

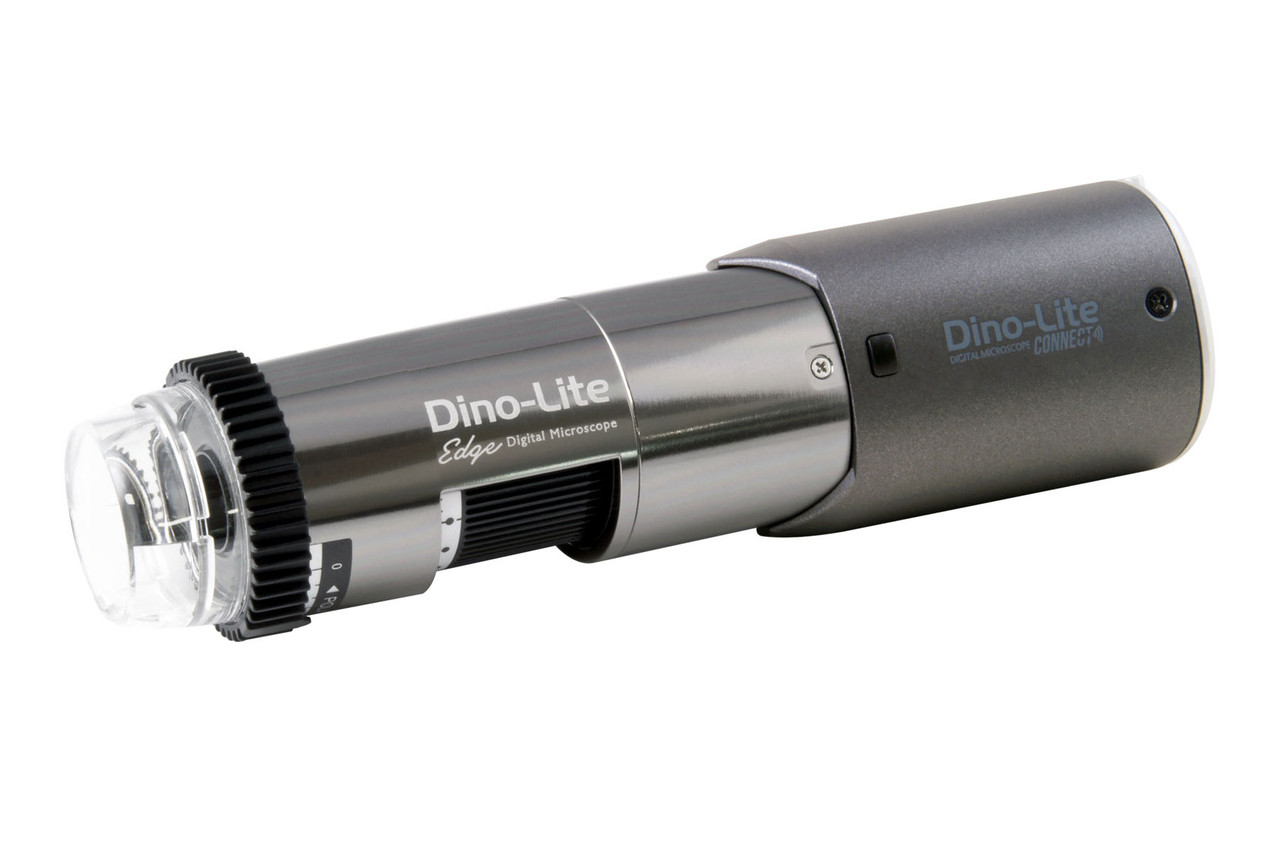

The adaptable interface provides the capability of transforming Dino-Lite into a wireless microscope when attaching with WF-20.
Robust Metal Housing
The metal housing made of anodized aluminum alloy offers compelling advantages of protection and endurance. The anodized alloy provides extra protection from electromagnetic interference.
Information about working distance and field of view
|
M |
WD |
FOV (x) |
FOV (y) |
DOF |
|
10 |
142.6 |
39.6 |
29.7 |
26.0 |
|
20 |
60.1 |
19.8 |
14.8 |
7.0 |
|
30 |
33.6 |
13.2 |
9.9 |
3.3 |
|
40 |
21.0 |
9.9 |
7.4 |
2.0 |
|
50 |
14.0 |
7.9 |
5.9 |
1.4 |
|
60 |
9.8 |
6.6 |
4.9 |
1.0 |
|
70 |
7.3 |
5.7 |
4.2 |
0.8 |
|
80 |
5.7 |
4.9 |
3.7 |
0.6 |
|
90 |
4.8 |
4.4 |
3.3 |
0.5 |
|
100 |
4.3 |
4.0 |
3.0 |
0.4 |
|
110 |
4.2 |
3.6 |
2.7 |
0.4 |
|
120 |
4.3 |
3.3 |
2.5 |
0.3 |
|
130 |
4.7 |
3.0 |
2.3 |
0.3 |
|
140 |
5.2 |
2.8 |
2.1 |
0.3 |
|
150 |
5.8 |
2.6 |
2.0 |
0.3 |
|
160 |
6.5 |
2.5 |
1.9 |
0.2 |
|
170 |
7.3 |
2.3 |
1.8 |
0.2 |
|
180 |
8.1 |
2.2 |
1.6 |
0.2 |
|
190 |
9.1 |
2.1 |
1.6 |
0.2 |
|
200 |
10.0 |
2.0 |
1.5 |
0.2 |
|
210 |
11.0 |
1.9 |
1.4 |
0.2 |
|
220 |
12.1 |
1.8 |
1.3 |
0.2 |
M = magnification rate WD = working distance (without front cap) FOV = field of view DOF= depth of field Unit = mm
Gallery
Specification
|
Model |
AF7515MZT |
|
Series |
Dino-Lite Edge |
|
Interface |
USB 2.0 |
|
Resolution |
5.0 Megapixel (2592 x 1944) |
|
Magnification |
10x ~ 220x |
|
Working Distance |
142.6 ~ 12.1 mm |
|
Frame Rate |
10 fps at 5.0 MP/3.0 MP, MJPEG 25 fps at 1.3 MP, MJPEG 30 fps at VGA, MJPEG
10 fps at 1.3 MP, YUY2 |
|
System Requirements |
CPU: 2.9 GHz dual-core Intel Core i5 equivalent or greater RAM: 4 GB or more HD: 150 MB available space or more |
|
Operating System |
Windows 7/8/10/11 Mac OS 10.14 or later (EDOF/EDR are NOT available on macOS) |
|
Saving Format |
Image: DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM DinoXcope: PNG, JPEG Video: DinoCapture 2.0: WMV, FLV, SWF DinoXcope: MOV |
|
Measurement Function |
Yes |
|
Calibration Function |
Yes |
|
Microtouch |
Yes |
|
Scroll Lock |
Yes |
|
Illumination |
8 white LEDs |
|
Included Front Caps |
N3C-C (Close Cap) N3C-D (Diffuser Cap) N3C-D2 (Opal Diffuser Cap) N3C-E (Extended Open Cap) N3C-L (Long Cap) N3C-O (Open Cap) N3C-S (Sidelight Cap) |
|
Cable Type |
Detachable Micro B – Type-C cable Detachable Micro B – Type-A cable |
|
Cable Length |
Approx. 1.8 m |
|
Unit Dimension |
115 mm (H) x 34 mm (D) |
|
Unit Weight |
Approx. 97 g |
