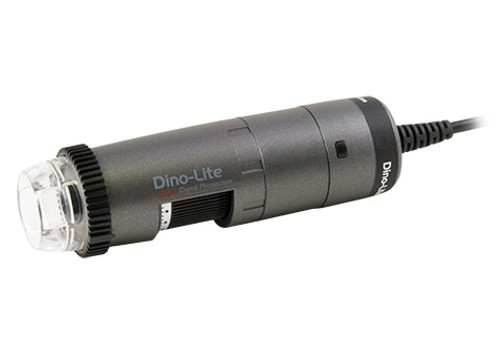

  • AF4515ZT Attachable interface (USB - WiFi)
  • AF4515ZT Attachable interface (USB - WiFi)

    • AF4515ZT Attachable interface (USB - WiFi)

    $1,195.00
    (No reviews yet) Write a Review
    SKU:
    AF4515ZT
    Adding to cart… category.add_cart_announcement

    Product Description

    Featuring with FLC and AMR, the Dino-Lite Edge 1.3MP AF4515ZT was made to be tool of choice for measurement-intensive applications within 20-220X magnification.  With the adaptable interface which supports the connection to the WF-20 Wi-Fi streamer, the AF4515ZT could be transformed into a wireless microscope on an as-needed basis.

      High optical resolution
    The superior optics adopted in the Edge series reveals the finest details, answering the needs of the most demanding microscopy applications.

      1.3 Megapixels
    Thanks to the low loss MJPEG compression, the advanced CMOS image sensor allows to transmit fluid and crisp image with resolution up to 1280x1024.

      Adaptable interface
    The adaptable interface provides the capability of transforming Dino-Lite into a wireless microscope when attaching with WF-20.

      Flexible LED Control (FLC)
    Tasking with software, the FLC maximizes illumination flexibility by offering independent on/off control of the four LED quadrants in addition to the 6-levels intensity adjustment capability.

      Automatic Magnification Reading (AMR)
    Without the hassle to stop and check the magnification for doing a measurement, the AMR detects the magnification rate automatically through the software, making the measurement be a more efficient, accurate, and pleasant process.

      Adjustable polarizer
    The built-in adjustable polarizer allows to remove freely the unwanted reflection or glare from the object surface for a better contrast.

      Scroll Lock
    The scroll lock ensures the focus knob staying at the desired focus or magnification position without worry of unintentional movement.

      Interchangeable caps
    The interchangeable caps provide adaptability to numerous applications with alternative lighting or object interface, such as but not limited to diffused-light, ring-light, and coaxial-light etc.

        Information about working distance and field of view
    M WD FOV (x) FOV (y) DOF
    20 60.2 19.5 15.6 2.5
    30 33.5 13 10.4 1.8
    40 20.9 9.8 7.8 1.5
    50 13.9 7.8 6.3
    60 9.7 6.5 5.2
    70 7.1 5.6 4.5 1.0
    80 5.5 4.9 3.9
    90 4.5 4.3 3.5
    100 4.1 3.9 3.1
    110 4 3.6 2.8
    120 4.1 3.3 2.6
    130 4.5 3 2.4
    140 5 2.8 2.2
    150 5.6 2.6 2.1
    160 6.3 2.4 2
    170 7.1 2.3 1.8
    180 8 2.2 1.7
    190 8.9 2.1 1.6
    200 9.9 2 1.6
    210 10.9 1.9 1.5
    220 11.9 1.8 1.4 0.1

    M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm

        Interchangeable front caps
      N3C-C / Close Cap
      This cap protects the lens and LED lights from contamination of dust, debris, or moisture.

      N3C-D / Diffuser Cap
      This cap diffuses the LED light.

      N3C-D2 / Opal Diffuser Cap
      This cap diffuses the LED light.

      N3C-E / Extended Open Cap
      Dino-Lite Edge (stand type) will focus at approximately 200x when the cap touches surface.

      N3C-L / Long Cap
      This cap is useful to adjust the working focus of Dino-Lite Edge at lower magnification.

      N3C-O / Open Cap
      This is the standard cap for normal usage.

      N3C-S / Sidelight Cap
      This cap creates images with more depth and texture.



    Other Details

    Model AF4515ZT Dino-Lite Edge
    Interface USB 2.0
    Product Resolution 1.3M pixels (1280x1024)
    Magnification 20x~220x
    Frame Rate 15fps in 1.3MP, MJPEG
    30fps in VGA, MJPEG
    Lighting 8 white LEDs
    Polarizer Yes
    Microtouch Yes
    Operating System Supported Windows 10, 8, 7, Vista, XP
    Mac OS 10.10 or later
    Calibration Function Yes
    Measurement Function Yes
    Unit Dimension 11.4cm (H) x 3.3cm (D)
    Unit Weight 111g
    Color Grey: AF4515ZT / White: AF4515ZT(W)
