Product Description

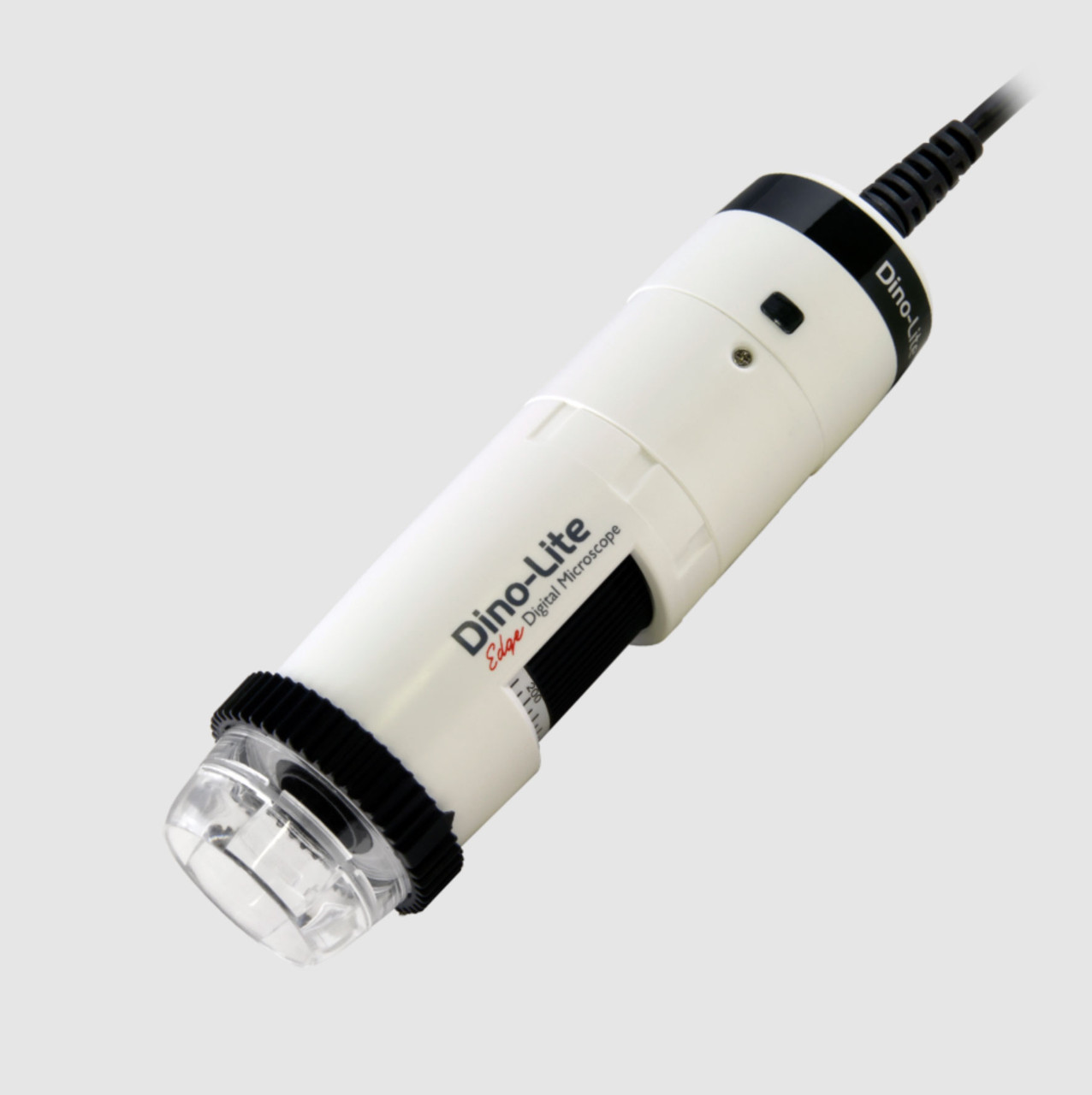

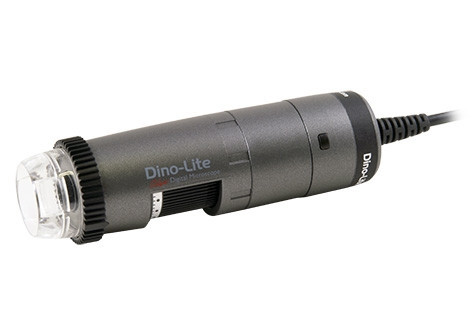

With zoom lens operable at magnification 10x-50x, the AF4115ZTW delivers stunning corner-to-corner sharpness with noticeably large depth-of-field, making it ideal for macro view applications, from industrial, entomology, to dermatology and more. With the adaptable interface which supports the connection to the WF-20 Wi-Fi streamer, the AF4515ZT could be transformed into a wireless microscope on an as-needed basis.

Large Field-of-View (FOV) and Depth-of-Field (DOF)
The AF4115ZTW delivers higher image quality with larger FOV and DOF, compared to other Dino-Lite with the same working distance. This feature makes it ideal for macro view applications.

Zoomable with long working distance
Working with distance larger than 1cm from the target, rotating the knob may find another magnification with focus, and thus effectively zoom in the image optically. This may help to retain the capability looking into more detail while enjoying the large FOV feature.

Polarizer
To many applications, it is inevitable to have reflection on the surface resulting from the built-in illumination. The freely adjustable polarizer helps to reveal more detail or to enhance the contrast on the surface by reducing or eliminating the reflections.
For applications such as optical mineralogy requiring transmitted polarizing illumination, the Dino-Lite back-light pad (BL-ZW1) is optional to be used with all Dino-Lite polarizer models.

Adaptable cap design
This model features a detachable and interchangeable front cap that extends its range of use, as different caps are available for various applications. Removing the front cap provides greater working distance and access to the full magnification range.

Interchangeable Front Caps

	N3C-C / Close Cap This cap protects the lens and LED lights from contamination of dust, debris, or moisture.
	N3C-D / Diffuser Cap This cap diffuses the LED light.
	N3C-D2 / Opal Diffuser Cap This cap diffuses the LED light.
	N3C-E / Extended Open Cap Dino-Lite Edge (stand type) will focus at approximately 200x when the cap touches surface.
	N3C-L / Long Cap This cap is useful to adjust the working focus of Dino-Lite Edge at lower magnification.
	N3C-O / Open Cap This is the standard cap for normal usage.
	N3C-S / Sidelight Cap This cap creates images with more depth and texture.

Information about working distance and field of view

T Zone
M	WD	FOV (x)	FOV (y)	DOF
50	17.5	9	7	3
40	37.5	11	9	4
30	67.5	15	12	6
20	127.5	23	19
15	177.5	30	24

W Zone
M	WD	FOV (x)	FOV (y)	DOF
30	17.5	14	11	6
20	37.5	25	20
15	47.5	31	25
10	67.5	41	33
5	177.5	98	78

M = magnification rate WD = working distance (without front cap) FOV = field of view DOF= depth of field Unit = mm

Other Details

Model	AM4115ZTW Dino-Lite Edge
Interface	USB 2.0
Product Resolution	1.3M pixels (SXGA)
Magnification Rate	10x~50x
Sensor	Frame Rate Up to 30fps
Save Formats	Image: DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM DinoXcope: PNG, JPEG Movie: DinoCapture2.0: WMV, FLV, SWF DinoXcope: MOV
Microtouch	Touch sensitive trigger on the microscope for taking pictures
Lighting	8 white LED lights switched on/off by software
Polarizer	Yes
Operating System Supported	Windows 10, 8, 7, Vista, XP Mac OS 10.9 or later
Unit Weight	100g
Package Dimensions	10.5cm (H) x 3.2cm (D)
